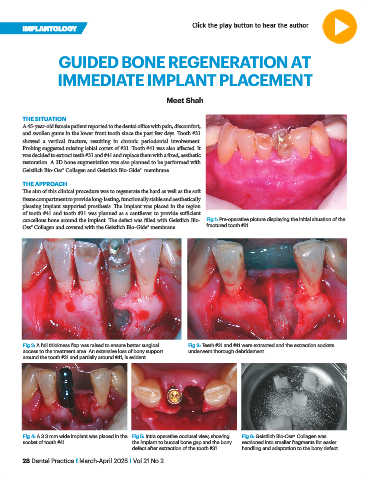

IMPLANTOLOGY

GUIDED BONE REGENERATION AT

IMMEDIATE IMPLANT PLACEMENT

Meet Shah

THE SITUATION
A 45-year-old female patient reported to the dental office with pain, discomfort,
and swollen gums in the lower front tooth since the past few days. Tooth #31
showed a vertical fracture, resulting in chronic periodontal involvement.
Probing suggested missing labial cortex of #31. Tooth #41 was also affected. It
was decided to extract teeth #31 and #41 and replace them with a fixed, aesthetic
restoration. A 3D bone augmentation was also planned to be performed with
Geistlich Bio-Oss® Collagen and Geistlich Bio-Gide® membrane.

THE APPROACH
The aim of this clinical procedure was to regenerate the hard as well as the soft
tissue compartment to provide long-lasting, functionally stable and aesthetically
pleasing implant supported prosthesis. The implant was placed in the region
of tooth #41 and tooth #31 was planned as a cantilever to provide sufficient
cancellous bone around the implant. The defect was filled with Geistlich Bio- Fig 1: Pre-operative picture displaying the initial situation of the
Oss® Collagen and covered with the Geistlich Bio-Gide® membrane. fractured tooth #31

Fig 2: A full thickness flap was raised to ensure better surgical Fig 3: Teeth #31 and #41 were extracted and the extraction sockets
access to the treatment area. An extensive loss of bony support underwent thorough debridement.
around the tooth #31 and partially around #41, is evident.

Fig 4: A 3.3 mm wide implant was placed in the Fig 5: Intra operative occlusal view, showing Fig 6: Geistlich Bio-Oss® Collagen was
socket of tooth #41. the implant to buccal bone gap and the bony sectioned into smaller fragments for easier
defect after extraction of the tooth #31. handling and adaptation to the bony defect.
