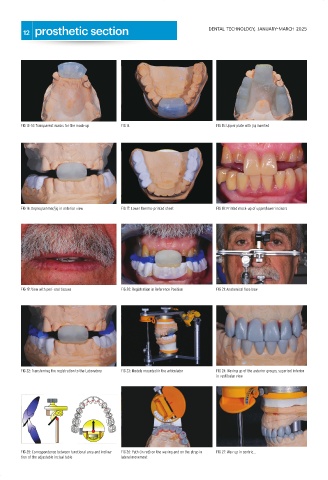

12 prosthetic section DENTAL TECHNOLOGY, JANUARY-MARCH 2025

FIG 13-14: Transparent masks for the mock-up FIG 14 FIG 15: Upper plate with jig inserted

FIG 16: Deprogrammer/jig in anterior view FIG 17: Lower thermo-printed sheet FIG 18: Printed mock-up of upper/lower incisors

FIG 19: View with peri-oral tissues FIG 20: Registration in Reference Position FIG 21: Anatomical face bow

FIG 22: Transferring the registration to the Laboratory FIG 23: Models mounted in the articulator FIG 24: Waxing up of the anterior groups, superior/ inferior
in vestibular view

FIG 25: Correspondence between functional area and inclina- FIG 26: Path (in red) on the waxing and on the strap in FIG 27: Wax-up in centric...
tion of the adjustable incisal table lateral movement
